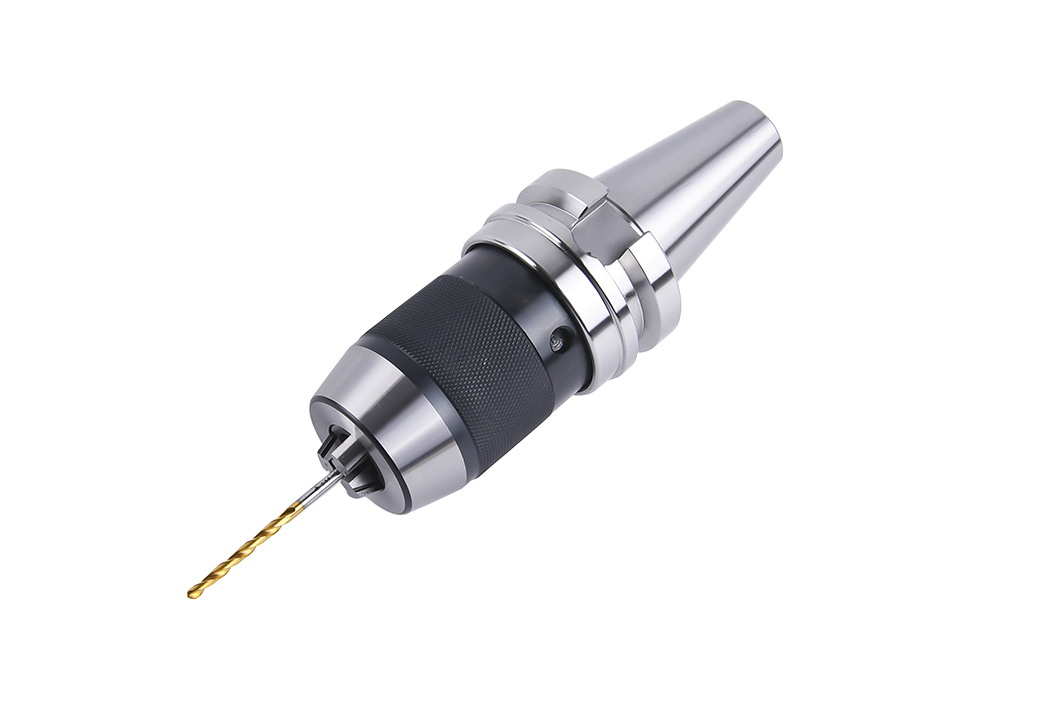

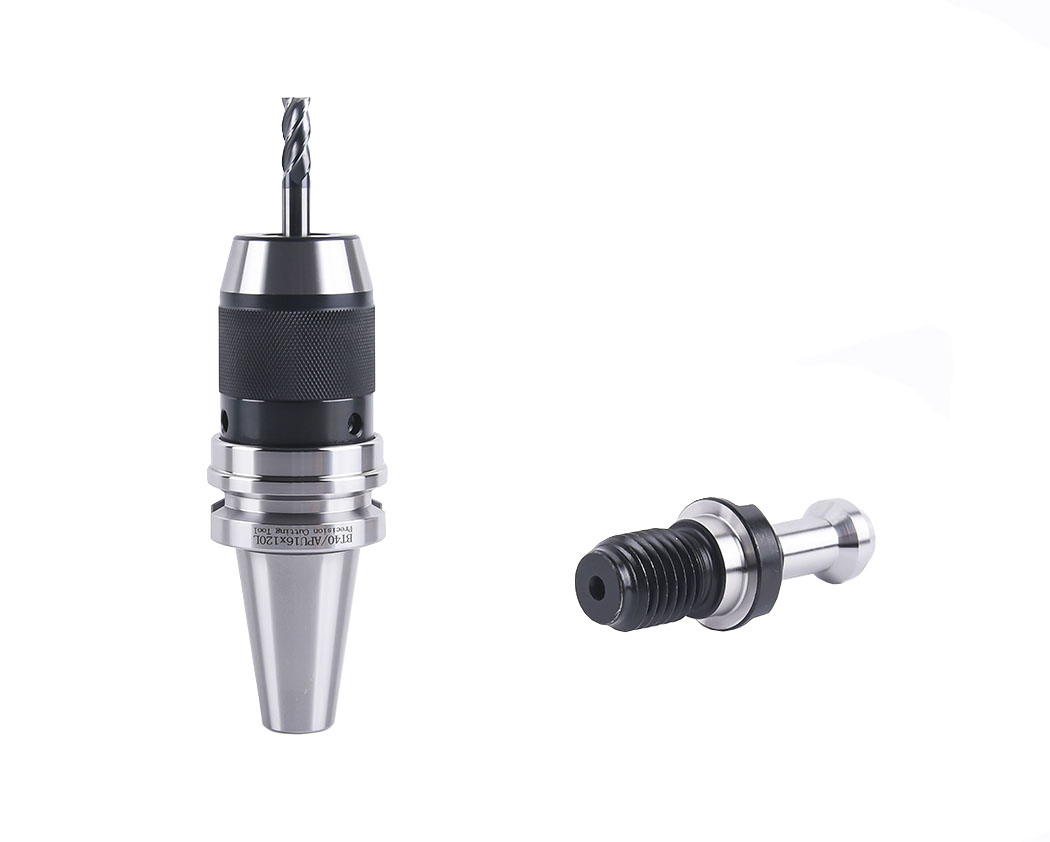

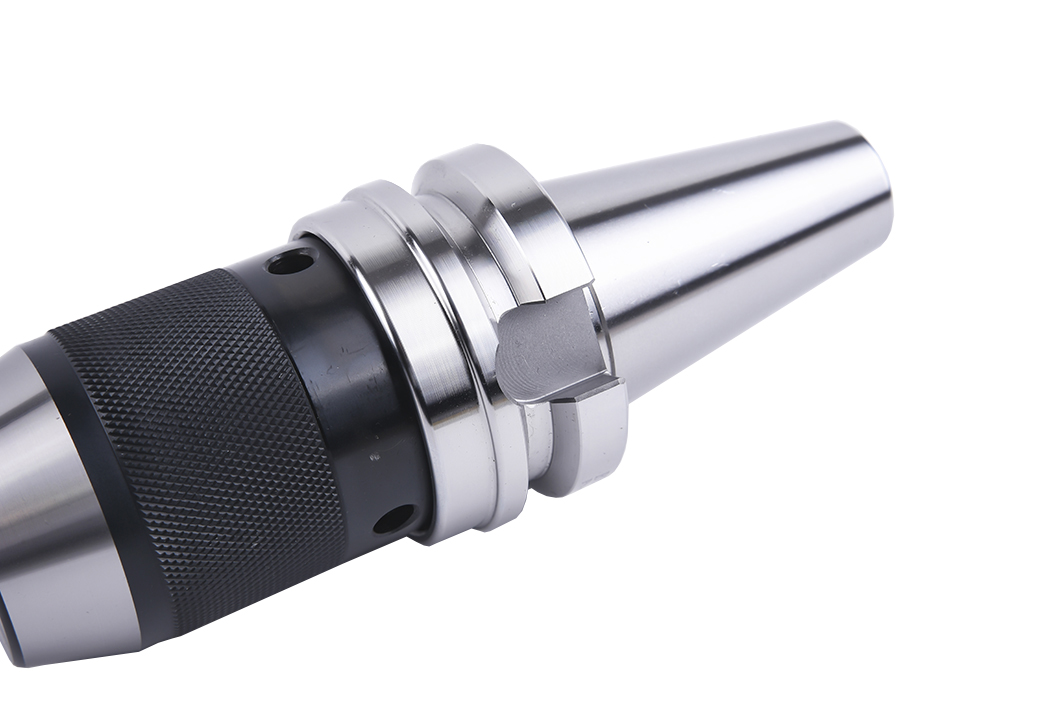

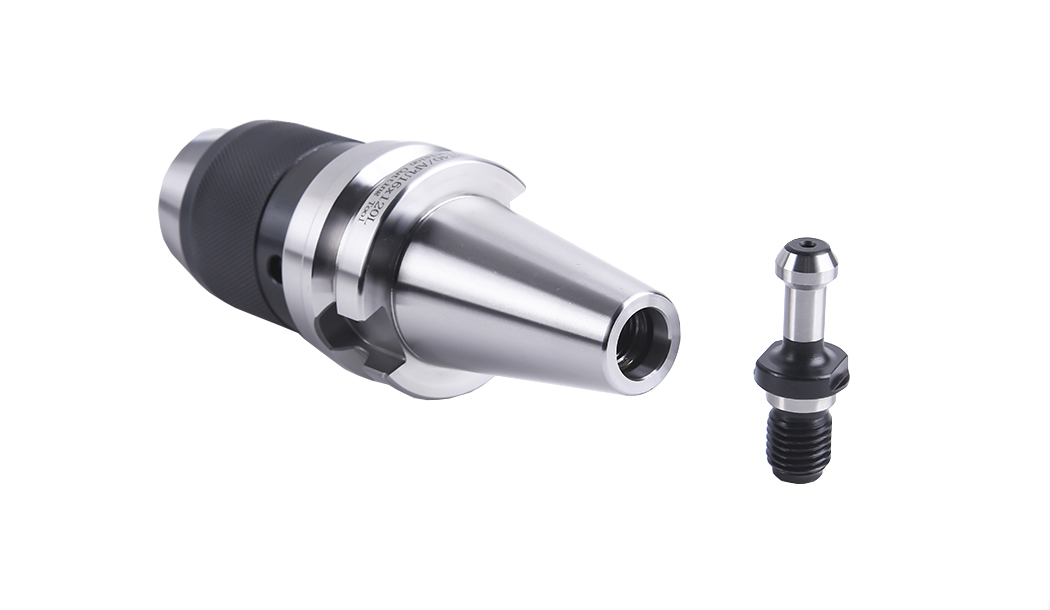

Bt40 Integrated Drill Chuck Self-Locking Self-Tightening Drill Chuck Holder

"Drill chuck holder" refers to the drill chuck holder, which is the tool used to install and secure the drill chuck. A drill chuck is a device used to hold a drill bit or other cutting tool, while a drill chuck holder is a component installed on a machine tool or other processing equipment to support and hold the drill chuck in place.
Availability:
Quantity:
  • BT30-APU08-80L

"Drill chuck holder" refers to the drill chuck holder, which is the tool used to install and secure the drill chuck. A drill chuck is a device used to hold a drill bit or other cutting tool, while a drill chuck holder is a component installed on a machine tool or other processing equipment to support and hold the drill chuck in place.

Drill chuck holder is usually made of metal, with strong clamping force, stable and reliable characteristics. They are usually used in conjunction with machining equipment such as drill presses, milling machines, lathes, etc., to install and secure drill bits for drilling or other machining operations.

The choice of drill chuck seat should be determined according to the specifications of the processing equipment and the characteristics of the workpiece to be processed to ensure stable installation and safe operation. When using the drill chuck seat, it is necessary to pay attention to maintaining cleanliness, regular inspection and maintenance to ensure its normal work and service life.

In general, the drill chuck holder is a tool used to install and fix the drill chuck, and is an indispensable and important part in the machining process.

1

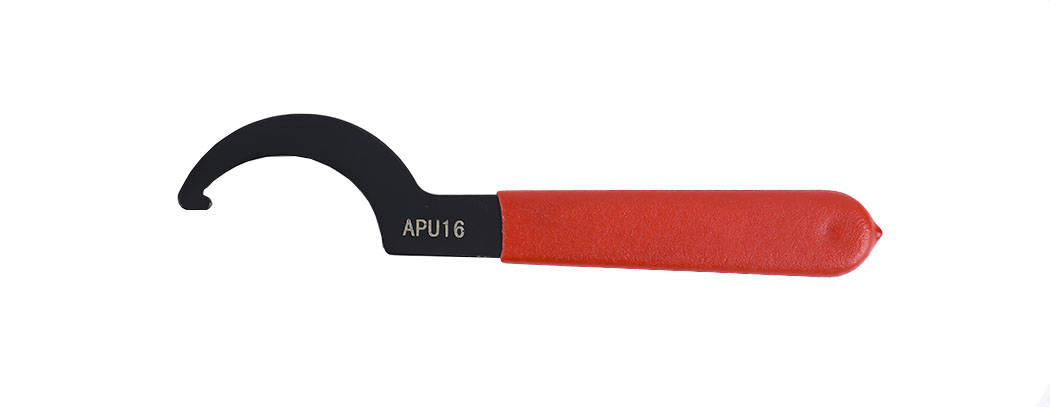

Model Specification D D1 L Applicable wrench Clamping range
BT30-APU08-80L 46 37 80 APU08 1~8
BT30-APU13-100L 46 50 100 APU13 1~13
BT30-APU16-110L 46 57 110 APU16 1~16
BT40-APU08-90L 63 37 90 APU08 1~8
BT40-APU13-110L 63 50 110 APU13 1~13
BT40-APU13-150L 63 50 150 APU13 1~13
BT40-APU16-120L 63 57 120 APU16 1~16
BT40-APU16-150L 63 57 150 APU16 1~16
BT50-APU13-110L 63 50 110 APU13 1~13
BT50-APU13-180L 63 50 180 APU13 1~13
BT50-APU16-120L 63 57 120 APU16 1~16
BT50-APU16-180L 63 57 180 APU16 1~16
NT30-APU13-110L 63 50 110 APU13 1~13
NT30-APU16-110L 63 57 110 APU16 1~16
NT40-APU13-110L 63 50 110 APU13 1~13
NT40-APU16-120L 63 57 120 APU16 1~16
